Tour The CAVE — Interactive Dollhouse

Drag To Rotate 360° · Scroll Or Pinch To Zoom · ↑ ↓ ← → To Orbit

100%

From Your Photos

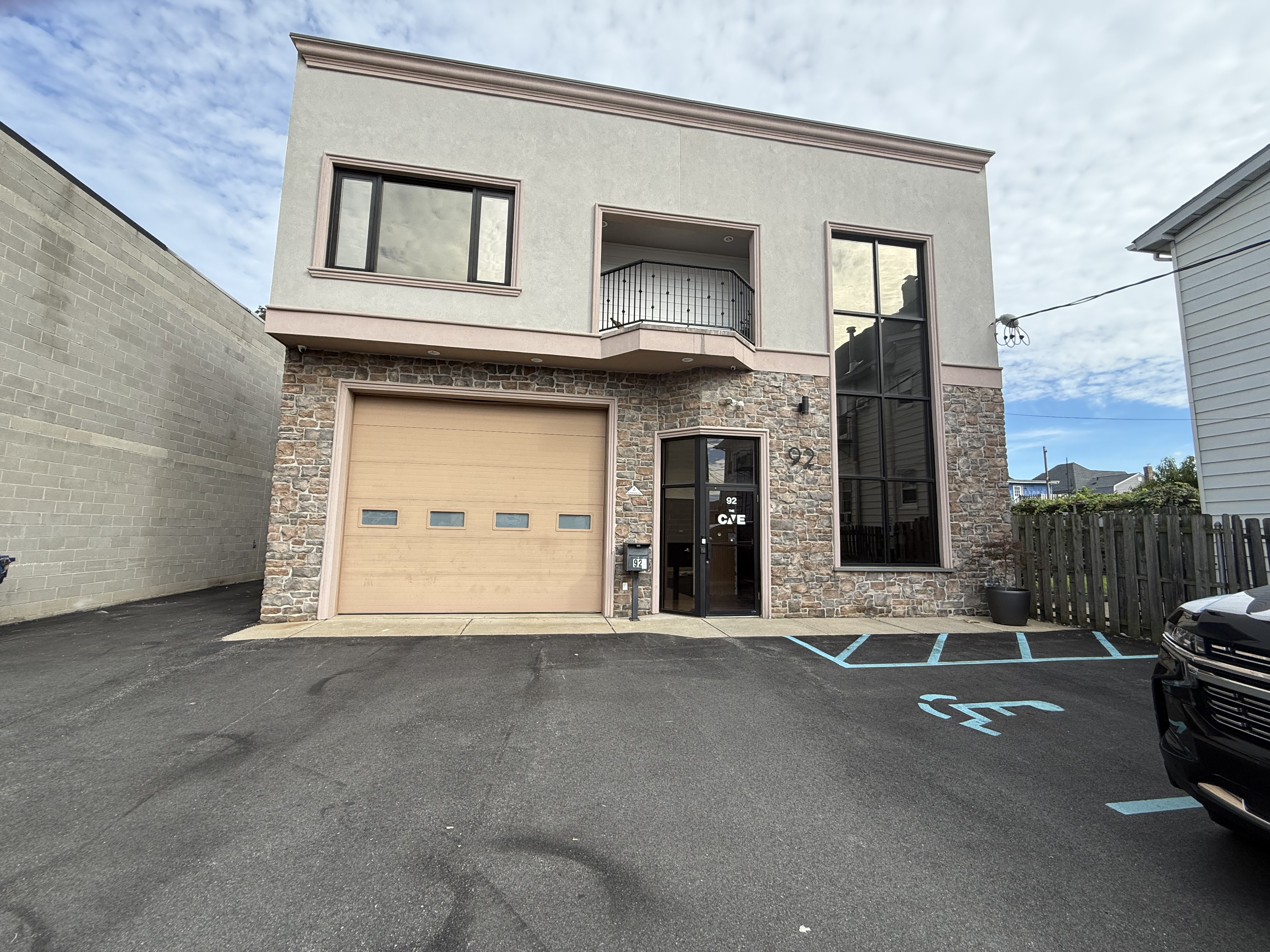

Pale stucco, stone facing, warm trim, tan garage door, black frames and balcony rails, and a weathered wood fence.

Exterior geometry follows the working model; photos provide materials and colors. Choose Combined Model or a floor to explore the rooms.

Photo references

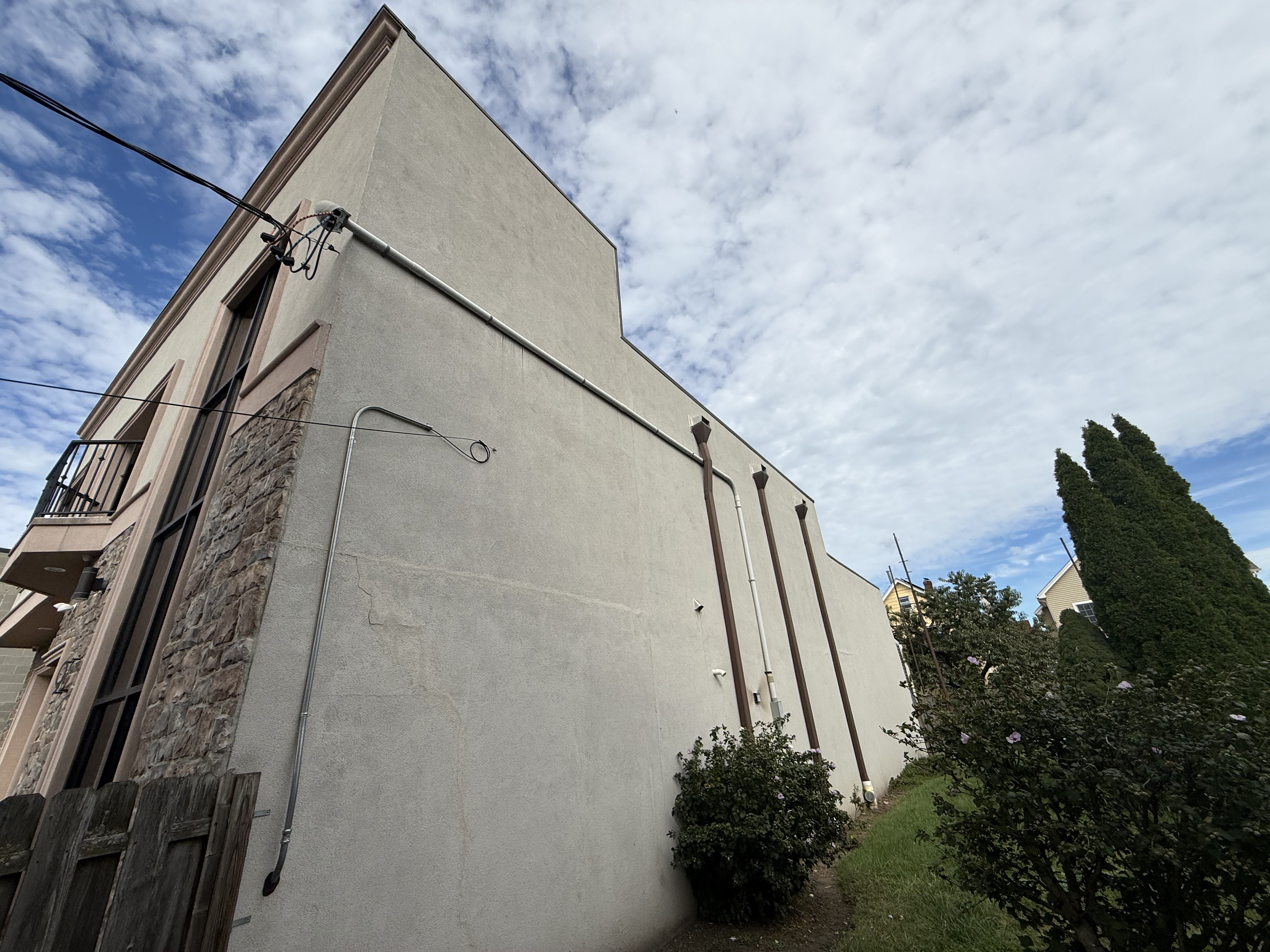

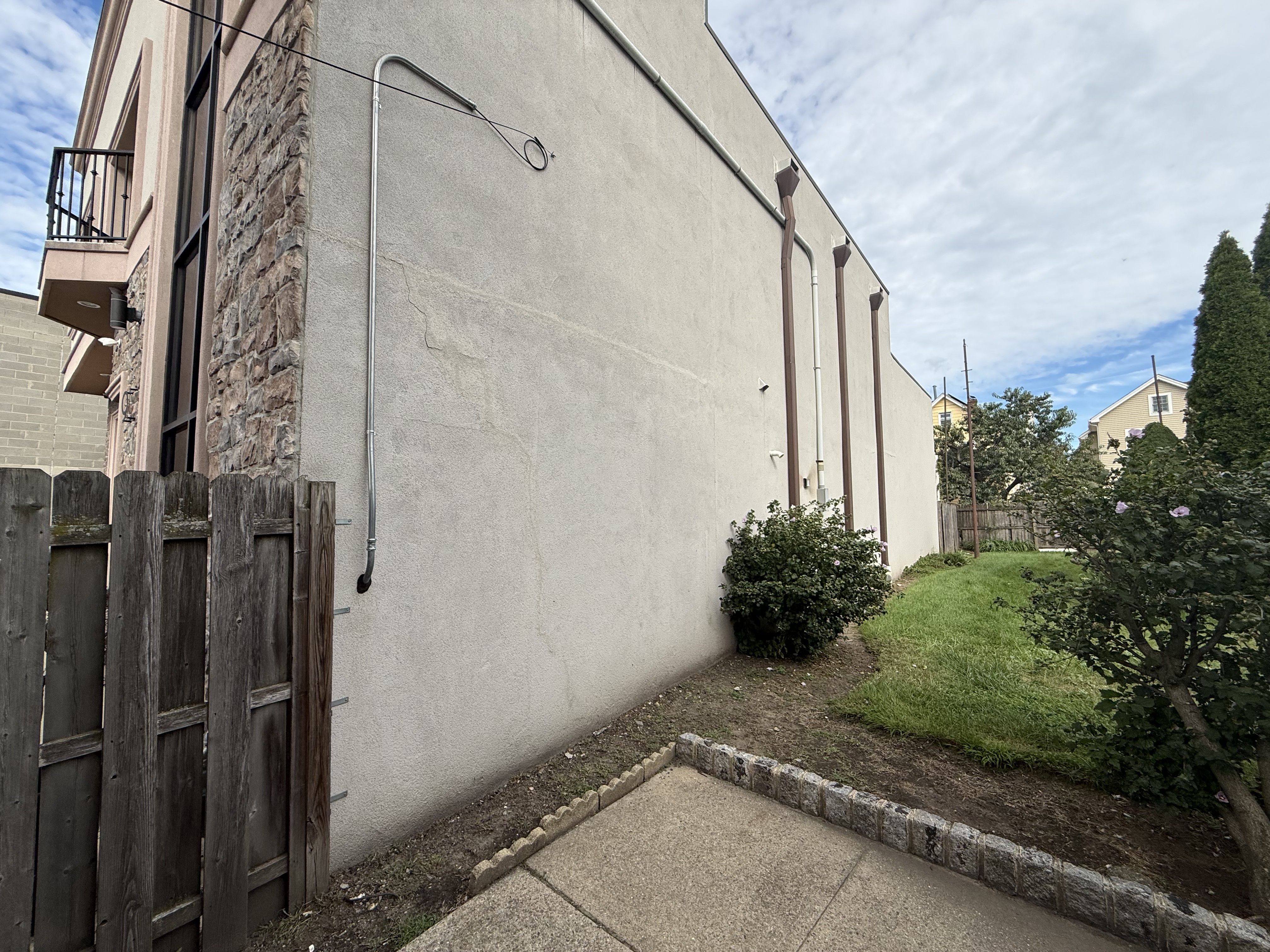

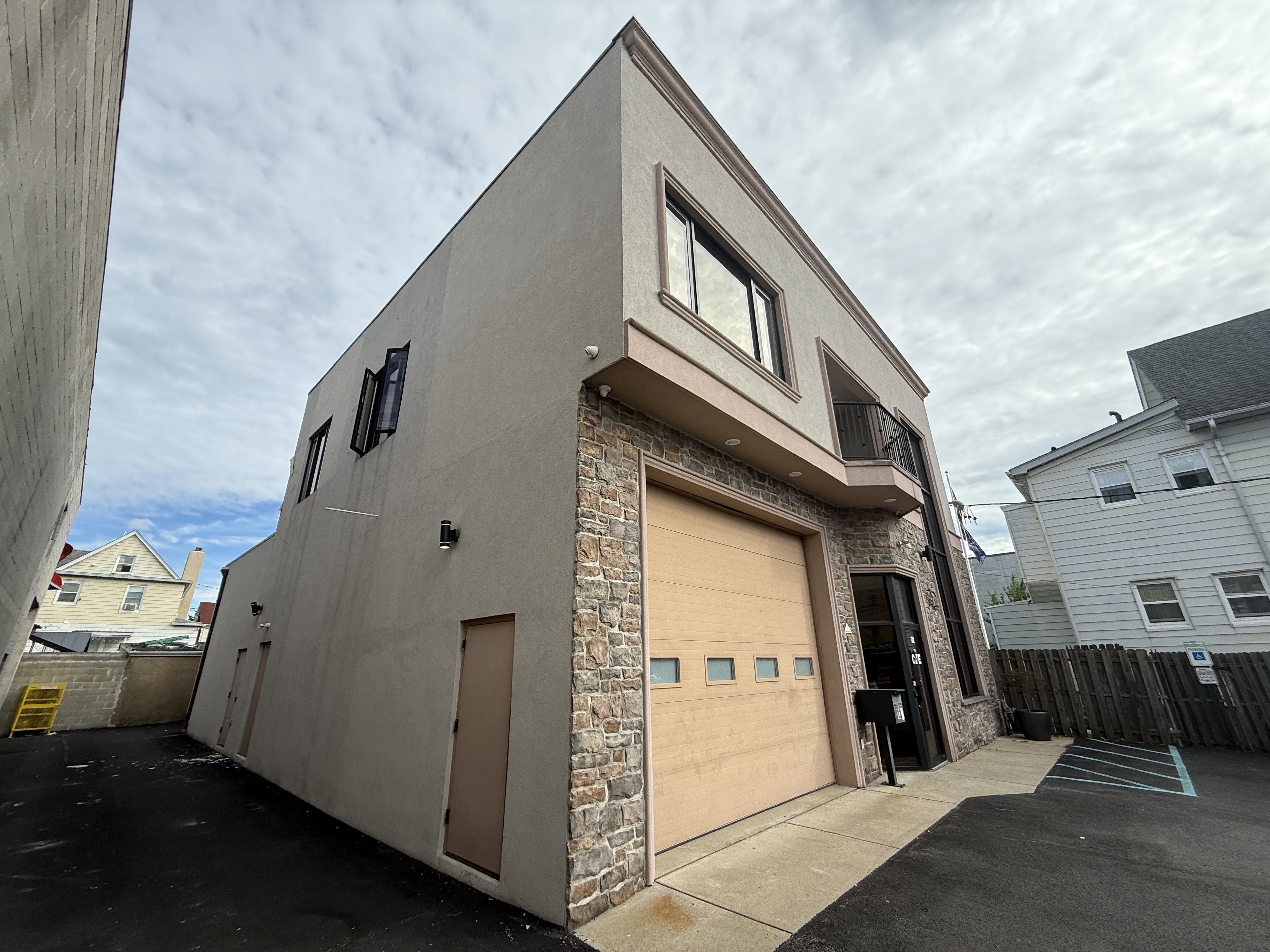

Left side · Right side · Fence detail

LEVEL 01

Ground Floor

Floor & Cyclorama

Show Floor Finishes

White cyclorama · rear rectangle
Polished concrete · remaining floor

12′ white walls on the left, rear and right, with a 3′ radius at the floor. Front stays open. Corner blends and exact paint boundary remain schematic.

Model overlays

Show Room Markers Show Roofs Show Ceiling Guides

Floor-To-Floor Height

11 ft lower-floor datum from proposed Section A. Your ≈47″ rise places the third level at ≈14′11″; proposed Section B labels 15 ft. Floor thickness and actual elevations still need verification.

Third-Floor Ceiling · Left

Second-Floor Ceiling · Right

Left and right are as viewed facing the front. Left clearance is measured from the third floor; right clearance from the second floor. The third floor is approximately 47″ higher. Five skylights are shown on the photographed roof plans; exact placement and installed condition remain unverified.

Raised left offices and common area follow your marked plan; level boundaries remain approximate. Interior walls extend to their ceilings. Unmeasured ground-floor service-area ceilings use a provisional 10′ height; the cyclorama finish remains 12′.

Doors & Bathrooms

Doors are shown at enclosed-room entrances; the kitchen stays open. Toilets and sinks identify all four bathrooms. Door swings, sizes and fixture placement are schematic.

Ground-floor front-right room beneath the stair: Utility / Equipment Storage.

Photographed Plans

Show Proposed Features

Blue linework: five upper skylights, two rear-roof units and facade openings traced from the proposal. Installed condition unverified.

The front-center balcony has an access door from Office 1 through the front bay. The bay and balcony are provisionally aligned with Office 1’s raised floor; door size, swing and any threshold step need confirmation. Current room names, 47″ rise and central entrance follow your observations.

Studio Lighting

Show Lighting Grid

Ten Luxli 2×1 RGB light panels near the cyclorama walls: four along the back, three along each side. Shown at an approximate 13′6″ mounting height, above the 12′ cyc walls. Panel count/type follow your description; spacing, aiming and mounting height remain provisional.

Use Ground Floor and Overhead View to inspect the layout.

Site Layout

Driveway along the left side.

Parking lot between the front entrance and street.

Seven nose-in parking spaces in front of the building, along the right edge of the front lot. The fence extends toward the street approximately 17″ to the right of the building’s right wall.

Front-center balcony per the plans; central vestibule and front door.

Measured: fence to parking-line ends 223″ (18′7″); left building-to-neighbor gap 151″ (12′7″); first space begins 108″ (9′) beyond the front-right facade. Space 1 is accessible. Stall widths, access-aisle layout, total lot depth and fence height remain provisional. The vestibule follows the marked ground plan, including its angled front corner.

Ground-Floor Ceilings

Front-left garage: ≈15 ft

Middle lounge: 10 ft

Rear studio: ≈15 ft

Separate rear studio roof above its ceiling. Roof shown at 16 ft from proposed Section C; your studio ceiling is approximately 15 ft. Actual construction thickness remains unverified.

Dashed ceiling guides show these heights in the model. Their room boundaries are approximate; the upper-floor footprint is still provisional.

Explore Rooms

Select a numbered space to explore.
